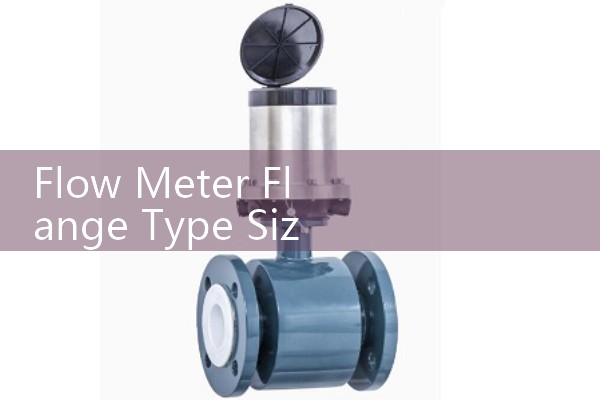

Flow Meter Flange Type Sizing: ANSI vs DIN Dimensional Standards for Industrial Pipelines
Quick Answer: Flange type flow meters must match the existing pipe flange standard. ANSI B16.5 and DIN EN 1092-1 are the two common dimensional systems in industrial pipelines. Confirm pressure class, face type, bolt circle, and pipe size before you send an inquiry.
Why Flange Standards Cause Mismatched Flow Meter Orders
In oil and gas, water, and chemical plants, flanged flow meters connect directly to pipe flanges in industrial pipelines. Last year a paint manufacturer in Vietnam ordered a DN80 electromagnetic flow meter with PN16 flanges. The site pipe was 3 inch ANSI 150 lb. The bolt holes did not line up. This added two weeks of rework. Most engineers skip this part. DN80 and 3 inch are close but not identical. Outside diameter, bolt circle, and bolt hole count change under each standard.
ANSI B16.5 vs DIN EN 1092-1: Key Dimensions
ANSI B16.5 covers nominal pipe sizes from 1/2 inch to 24 inch. DIN EN 1092-1 covers DN10 to DN2000 and higher for some pressure classes. A DN50 PN16 flange has a bolt circle of 125 mm and four bolt holes. A 2 inch ANSI 150 lb flange has a bolt circle of 120.7 mm and four bolt holes. The difference of 4.3 mm may look small. It stops a fit. The outer diameters also differ. For DN50 PN16 the outside diameter is 165 mm. For 2 inch ANSI 150 lb the outside diameter is 152.4 mm. The gasket surface is not the same.
Pressure Ratings: PN vs Class
ANSI classes are 150 lb, 300 lb, 600 lb, 900 lb, 1500 lb, and 2500 lb. DIN uses PN2.5, PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, and PN320. A common mistake is to assume PN16 equals ANSI 150 lb. This is not accurate. PN16 allows 16 bar at ambient temperature. ANSI 150 lb allows about 19.6 bar at ambient temperature for carbon steel. The material temperature rating changes the allowable pressure. A flow meter body and flange must carry the same rating as the pipeline. Silver Automation Instruments supplies electromagnetic flow meters with PN16, PN40, ANSI 150 lb, and ANSI 300 lb flanges in carbon steel or stainless steel.
Flange Face and Bolt Patterns That Affect Installation
Flange face type is another source of error. Common faces are raised face, flat face, and RTJ. A flat face flange on a PVC or lined pipe needs a full face gasket. A raised face flange on a metal pipe uses a ring gasket. Do not mix flat face and raised face flanges without a proper gasket and bolt torque plan. Bolt hole count also changes. For example, DN100 PN16 has 8 bolt holes. A 4 inch ANSI 150 lb flange has 8 bolt holes. That part matches. But the bolt circle on DN100 PN16 is 180 mm. The bolt circle on 4 inch ANSI 150 lb is 190.5 mm. The holes may look close. They will not align.
How to Specify Flange Type Flow Meter Without Rework
Send us the pipe size, flange standard, pressure rating, flange face type, fluid, temperature, and flow range. For an electromagnetic flow meter used on wastewater, als
Recommended Flow Meter Types for ANSI and DIN Piping
Silver Automation Instruments supplies flanged flow meters for ANSI and DIN pipelines. Electromagnetic flow meters cover DN15 to DN2000 for water, wastewater, chemicals, and slurries. Minimum conductivity is typically 5 µS/cm. Options include PTFE or polyurethane liner, 316L electrodes, 4-20 mA HART output, and IP68 remote sensors. Coriolis mass flow meters cover DN3 to DN150 for oil, LPG, chemicals, and food syrup. They measure mass flow in kg/h and density in kg/m³. Oval gear flow meters work well for diesel, lube oil, and low flow dosing. Vortex flow meters handle steam, compressed air, and natural gas with temperature sensors like PT100. Thermal mass flow meters suit biogas, flare gas, and aeration air in DN15 to DN200 lines. Each meter can be ordered with ANSI or DIN flanges if the flange spec is clear.
FAQ
Question: Can I install a DIN PN16 flow meter on an ANSI 150 lb pipe?
No. The bolt circle and outer diameter are often different. You need a flange adapter or a meter with the correct flange standard.
Question: Is DN80 the same as 3 inch for a flanged flow meter?
No. DN80 is close to 3 inch for pipe outside diameter in some schedules. But the flange dimensions are different under DIN and ANSI. The bolt circle and flange outside diameter do not match.
Question: What flange information do you need for a quote?
We need pipe size, flange standard, pressure class, face type, fluid, temperature, pressure, and flow range. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range.
Question: Can you supply flow meters with ASME B16.5 flanges for export to the Middle East?
Yes. We regularly supply ASME B16.5 flanged electromagnetic, vortex, and Coriolis meters to the Middle East and Southeast Asia. We can provide material certificates and pressure test reports.
Question: What is the lead time for a flanged flow meter with DIN or ANSI flanges?
Standard flanged electromagnetic flow meters often ship in 7 to 12 working days. Special pressure classes or materials may take 3 to 4 weeks. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range for a firm quote.
Contact Silver Automation Instruments. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. You can check flow-meter.com.au for product specifications. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Our technical team will check flange compatibility and send a quote.
