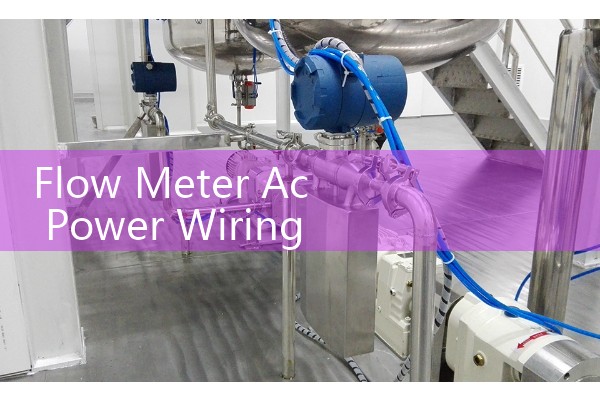

Flow Meter AC Power Wiring: Electrical Interference Isolation for Electromagnetic Sensors
Quick Answer: Keep AC power cables and electromagnetic flow sensor signal cables in separate conduits. Use shielded twisted pair wiring and ground the sensor at one point only. Silver Instruments electromagnetic flow meters include isolated 4-20 mA HART outputs for noisy AC plant conditions.
Here is the thing. Proper electrical interference isolation for electromagnetic sensors starts before the cable is pulled. Most plant engineers learn this during commissioning. A flow meter reads 12 m3/h on the bench, then jumps to 45 m3/h or negative values when a pump starts. The sensor is usually fine. The AC power wiring route and ground path cause the error. We have seen this on sites in Vietnam, the Philippines, and Peru.
Why AC Power Wiring Interferes with Electromagnetic Sensors
An electromagnetic flow meter measures voltage generated by conductive liquid moving through a magnetic field. The signal is small, often a few millivolts at low flow. AC power cables carry high current and create a magnetic field around the conductor. If signal cables run close to AC cables for more than a few meters, the field couples into the electrode or coil circuit.
Ground loops make this worse. In a water treatment plant in Surabaya, the flow meter and pump shared a steel structure and separate earth rods. The voltage difference between the rods was 3.2 V AC. That voltage appeared on the flow signal and caused a 15 percent span error.
Common Symptoms of Electrical Interference
Engineers report empty pipe alarms with no empty pipe. Flow readings spike when a mixer starts. A paint manufacturer in Southeast Asia saw a 1.2 m3/h negative spike every time a disperser motor started. The 4-20 mA output can hold at 20.8 mA or drop to 3.2 mA during motor start. Pulse output may send double counts. On some sites, the display value changes when a VFD ramps up. These are typical AC power wiring and grounding problems.
Isolation Rules for AC Powered Electromagnetic Flow Meters
Most engineers skip cable separation during installation. They later spend two days tracing noise from a pump motor. Use separate cable trays for AC power and signal wiring. Keep a distance of at least 300 mm between 415 V AC power cables and electrode signal cables. If the same conduit cannot be avoided, use a steel divider and install the signal cable in a grounded metal conduit.
Select cable types before ordering. For electrode circuits, use a shielded twisted pair with a drain wire. For coil drive circuits, use a separate shielded pair. Do not run the coil and electrode wires in the same screen except when the flow meter manual allows it. Silver Instruments supplies connection diagrams with each electromagnetic flow meter. The diagrams show separate terminals for L, N, PE, electrode, coil, and 4-20 mA HART.
Ground the flow sensor at a single earth point. The grounding ring or grounding electrode must connect to the plant earth bar with a copper cable of at least 4 mm². Do not daisy chain the ground from the flow sensor to the pump frame. Use a dedicated path. On plastic or lined pipe, insta
Field Test Procedure for AC Power Interference
Power the flow meter from a temporary clean AC source. Use an extension cable from a separate panel, not the pump starter. If the reading stabilizes, the problem is conducted interference on the AC supply. Next, disconnect the electrode cable and check the empty pipe diagnostic. If the diagnostic clears and returns when the cable is reconnected, the signal cable routing is the issue.
Measure the AC voltage between the flow meter body and the earth bar. A reading above 1.0 V AC at 50 Hz usually means a ground loop. Install a signal isolator in the 4-20 mA loop if the DCS or PLC input shares a noisy ground. Isolators with 2 kV isolation solve most loop coupling problems.
Silver Instruments Electromagnetic Flow Meter Wiring Support
Silver Automation Instruments offers electromagnetic flow meters from DN15 to DN2000 with compact or remote mount. Pulsed DC coil excitation reduces AC interference compared with older AC excitation designs. The converter accepts 85 to 265 V AC and 24 V DC. Outputs include isolated 4-20 mA HART, pulse, frequency, and RS485 Modbus.
Minimum liquid conductivity for most Silver Instruments electromagnetic flow meters is 5 µS/cm. Some models work down to 0.5 µS/cm with special electrodes. For DN50 to DN300 water and wastewater lines, a rubber liner with 316L electrodes works well. For chemical dosing, ask for PTFE liner and Hastelloy C electrodes.
When you request a quote, send your pipe size, fluid type, conductivity in µS/cm, pressure in bar, temperature in °C, and cable distance between sensor and transmitter. We will confirm the liner, electrode material, and wiring kit.
Call Silver Automation Instruments at +86-25-68650347. For WhatsApp, message +86-25-52155837. WeChat is +86 15365082610.
FAQ on Flow Meter AC Power Wiring and Electromagnetic Sensor Isolation
Can I run AC power cable and electromagnetic flow meter signal cable in the same tray?
No. Keep them in separate trays. If they must cross, cross at 90 degrees and keep at least 300 mm of separation.
What type of cable is best for electromagnetic flow meter electrode signals?
Use shielded twisted pair with a drain wire. Ground the shield at the converter end only, not at both ends, unless the manual specifies otherwise.
Why does my electromagnetic flow meter show flow when the pipe is empty?
This is often a ground loop or AC coupling from a nearby motor cable. Add a grounding ring and separate the signal cable. If the pipe is plastic, install grounding rings on both sides.
Do I need a signal isolator for the 4-20 mA output?
Yes, if the PLC analog input shares a ground with VFD or pump circuits. A 2 kV isolated signal converter removes loop noise and protects the input card.
What information should I send when asking for an electromagnetic flow meter quote?
Send your pipe size in DN, flow range in m3/h, fluid conductivity in µS/cm, pressure in bar, temperature in °C, and AC supply voltage. Also mention cable length from sensor to transmitter.
